Description

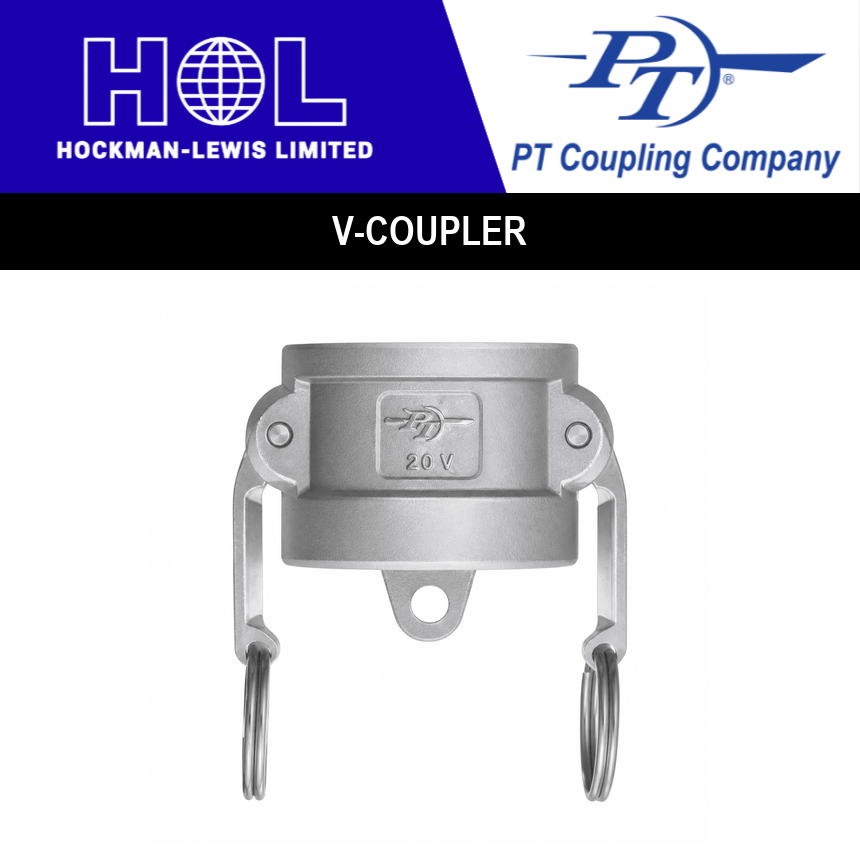

The PT Coupling V-Coupler is a Type V dust cap: a coupler-style cap that closes off an open adapter when the line is disconnected, keeping dirt and moisture out and product in.
Key Features
- Made in the U.S.A. by PT Coupling
- Built to interchange with A-A-59326 cam and groove fittings in 3/4″ through 4″ and 6″; 1/2″, 5″ and 8″-12″ may not interchange across brands
- Stainless steel fittings are 316 stainless steel
- HB cam arms are brass; HBS cam arms are 300 series stainless steel
- PT Coupling cam arms are guaranteed against breakage
- Security chains for dust caps are available
Specifications
- Type: V (coupler dust cap)
- Materials (ptcoupling.com): Aluminum, Brass, 316 Stainless Steel, Passivated Stainless Steel, CF8M Stainless Steel, Ductile Iron, Carbon Steel, Polypropylene, Food Grade Polypropylene, Nylon, Hastelloy C®, Monel®, Carpenter 20®
- Sizes by material (ptcoupling.com): Aluminum 1/2″ to 12″; Brass 1/2″ to 6″; 316 Stainless Steel 1/2″ to 12″; Passivated Stainless Steel 6″; CF8M Stainless Steel 3/4″ to 4″; Ductile Iron 1/2″ to 12″; Carbon Steel 3/4″ to 6″; Polypropylene 3/4″ to 4″; Food Grade Polypropylene 3/4″ to 4″; Nylon 3/4″ to 4″; Hastelloy C® 3/4″ to 4″; Monel® 3/4″, 3″; Carpenter 20® 3/4″, 2″, 3″
- Gasket: Buna-N standard; other gasket compounds available. Contact Hockman-Lewis for details.
- Max. working pressure (PT Coupling, metal cam & groove, under 100°F): 250 PSI for 1/2″–2″, 200 PSI for 2-1/2″–3″, 150 PSI for 4″, 75 PSI for 5″–6″, 50 PSI for 8″–12″. Ratings are reduced at higher temperatures. Contact Hockman-Lewis to confirm the rating for your size and operating temperature.
- Max. working pressure, polypropylene and nylon (PT Coupling): 100 PSI for 3/4″–2″, 50 PSI for 3″–4″
- Lead time: Many sizes are made to order. Contact Hockman-Lewis to confirm availability and lead time
Choosing a Material
- Aluminum: lightweight and economical with good abrasion resistance; for water, hydraulic oil, coolants, gasoline and petroleum products.
- Brass: good corrosion resistance at a lower cost than stainless and forms tight seals; ideal for water, and also used with hydraulic oil, coolants, gasoline and petroleum products.
- 316 Stainless Steel: excellent corrosion resistance and strength at high temperatures, and helps prevent product contamination; for salt water, waste water and many chemicals.
- Ductile Iron: excellent abrasion and wear resistance with good strength and toughness; for sand, grout, cement and other abrasives.
- Polypropylene: glass-fiber reinforced (black) with good abrasion, corrosion and chemical resistance; for water and coolants.
- Food Grade Polypropylene: white polypropylene for water and food-grade applications.
- Nylon: glass-fiber reinforced (green) with good abrasion, corrosion and chemical resistance; for water, coolants, gasoline and varnish.
- Hastelloy C®, Monel® and Carpenter 20®: for highly corrosive media such as hydrochloric and sulfuric acid.
PT Coupling does not recommend cam and groove fittings for compressed gas service, including air and steam.
Select only from the material and size combinations listed. Contact Hockman-Lewis to confirm availability and the PT Coupling item number for your application.
