Description

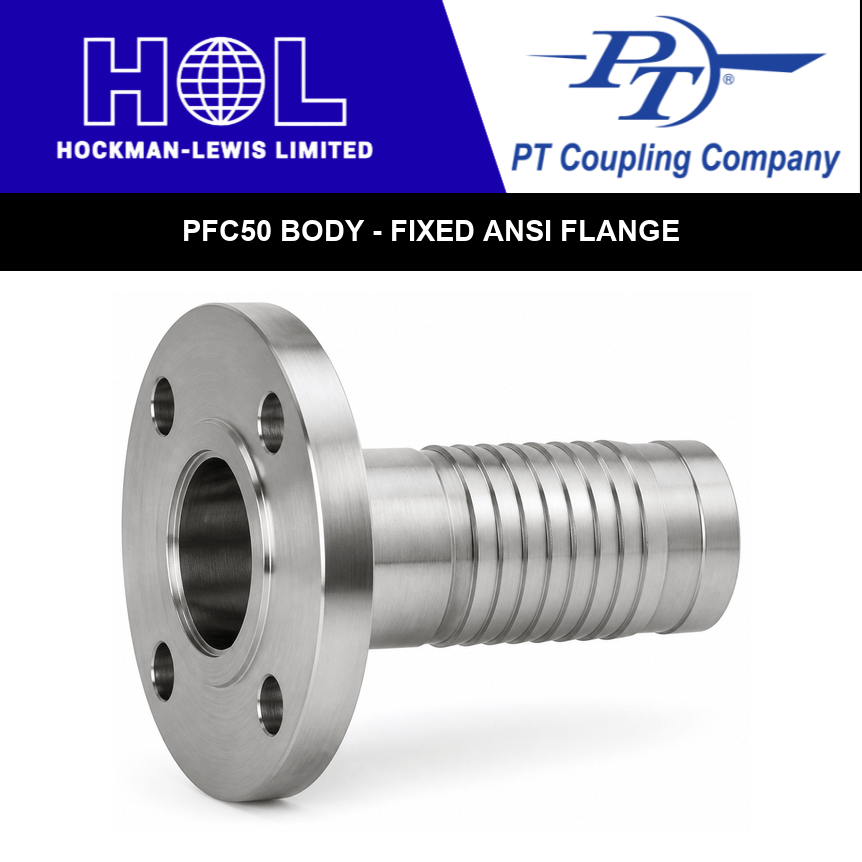

The PT Coupling PROGRIP PFC50 Body – Fixed ANSI Flange is a PROGRIP™ C50 external-crimp body (fixed pipe flange x crimp hose shank). Hose is attached by crimping a C50 ferrule or crimp sleeve over the hose shank.
Key Features
- Pipe flange bolt pattern conforms to ANSI B16.5 Class 150
- Flanges also available in 6″, 8″, 10″ and 12″ on request
Specifications
- Connection Type: Fixed pipe flange x crimp hose shank
- Flange Standard: ANSI B16.5 Class 150
- Flange Configuration: Fixed
- Crimp System: C50 external crimp
PT Coupling manufactures PROGRIP™ hose retention systems that attach hose to fittings by external crimping or internal expansion, in sizes from 1/2″ to 8″, for sanitary, pharmaceutical, chemical, petroleum, industrial and fire protection applications.
Contact Hockman-Lewis to confirm the right size, material and PT Coupling part number for your hose and application.
