Description

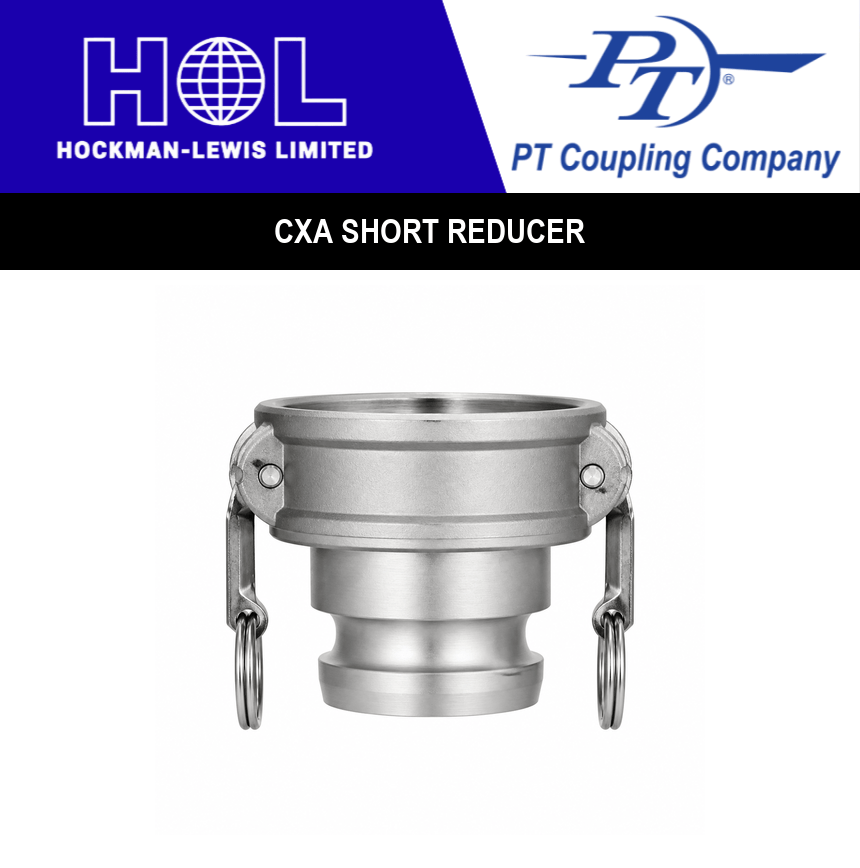

The PT Coupling CXA Short Reducer is a coupler x adapter (short pattern) cam and groove fitting for compact size changes directly between a cam and groove coupler and adapter. Reducers let you join hose, pipe and equipment of different sizes in one fitting.
Key Features
- Made in the U.S.A. by PT Coupling
- Built to interchange with A-A-59326 cam and groove fittings in 3/4″ through 4″ and 6″; 1/2″, 5″ and 8″-12″ may not interchange across brands
- Stainless steel fittings are 316 stainless steel
- HB cam arms are brass; HBS cam arms are 300 series stainless steel
- Also available with STA-LOK® II passive-locking cam arms. Contact Hockman-Lewis for details
- Pressure Safe option on 2″, 3″ and 4″ by special quote: a passive safety feature that protects the operator if the cam arms are opened under pressure
Specifications
- Connection: coupler x adapter (short pattern)
- Sizes by material (ptcoupling.com): Aluminum with HB or HBS cam arms 1″ x 2″ to 10″ x 8″; brass (HB) 3″ x 2″, 4″ x 2″, 4″ x 3″; 316 stainless steel 3″ x 1-1/2″ to 6″ x 4″; ductile iron and carbon steel 4″ x 2″; passivated stainless 3″ x 2-1/2″; also anodized aluminum and white nitrile gasket versions
- Gasket: Buna-N standard on couplers; other gasket compounds available. Contact Hockman-Lewis for details.
- Max. working pressure (PT Coupling, metal cam & groove, under 100°F): 250 PSI for 1/2″–2″, 200 PSI for 2-1/2″–3″, 150 PSI for 4″, 75 PSI for 5″–6″, 50 PSI for 8″–12″. Ratings are reduced at higher temperatures. Contact Hockman-Lewis to confirm the rating for your size and operating temperature.
- Lead time: Many sizes are made to order. Contact Hockman-Lewis to confirm availability and lead time
PT Coupling does not recommend cam and groove fittings for compressed gas service, including air and steam.
Select only from the material and size combinations listed. Contact Hockman-Lewis for dimensions, current availability and the PT Coupling item number for your combination.
